NZ type center drive concentrator
NZ type center drive concentrator
Advantage characteristics:
1. It adopts motor reducer and turbine transmission type, with large transmission torque and high efficiency.
2. With safety protection device, it is safer to use.
3. When the load is too large, the underwater scraping system can be manually or electrically lifted, and then gradually lowered, and the sludge is scraped off layer by layer.
4, the device has a small scraper to stir the scraping mud, the mud is more thorough, not blocked.
working principle:
The central transmission concentrator is mainly composed of a circular concentration tank and a squeegee scraper. The solid particles suspended in the slurry in the concentration tank settle under gravity, and the upper part becomes clarified water, so that the solid liquid can be separated. The slime deposited on the bottom of the concentrating tank is continuously scraped by the rake scraper to the center discharge port of the bottom of the tank, while the clarified water overflows from the upper edge of the concentrating tank.
Technical Parameters:
|
NZ (S) type thickener technical reference table |
|
|||||||||
|
规格型号 |
浓缩池 pond for concentration |
沉淀面积（m²） |
耙架转速（r/min） |
生产能力（t/d） |
传动电动机 ttansmission motor |
转速（r/min） |
外形尺寸（mm0 |
重量（kg） |
||
|
standard model |
直径（m）dia |
深度（m） depth |
sediment |
speed of frame |
productive capacity |
型号 model |
功率（kw）power |
speed |
dimension (L×W×H） |
weight |
|
NZ-1.8 |
1.8 |
1.8 |
2.55 |
0.5 |
1.3-5.6 |
Y90L-6 |
1.1 |
910 |
2000×1960×2900 |
1490 |
|
NZ-3.6 |
3.6 |
1.8 |
10.2 |
0.4 |
5-24 |
Y90L-6 |
1.1 |
910 |
3917×3787×3194 |
2875 |
|
NZ-6 |
6 |
3 |
28 |
0.3 |
14-62 |
Y100L2-4 |
3 |
1430 |
6170×5170×5153 |
8575 |
|
NZ-9 |
9 |
3 |
63.5 |
0.26 |
32-150 |
Y132S-6 |
3 |
960 |
10000×10000×5337 |
5370 |
|
NZ-12 |
12 |
3.5 |
113 |
0.19 |
≤250 |
Y132S-6 |
3 |
960 |
15500×12000×6625 |
8880 |
|
NZ-15 |
15 |
3.6 |
176 |
0.113 |
≤390 |
Y132M2-6 |
5.5 |
940 |
17240×16000×7500 |
10557 |
|
NZ-18 |
18 |
3.6 |
250 |
0.1 |
≤552 |
Y132M2-6 |
5.5 |
940 |
19700×18860×7650 |
12338 |

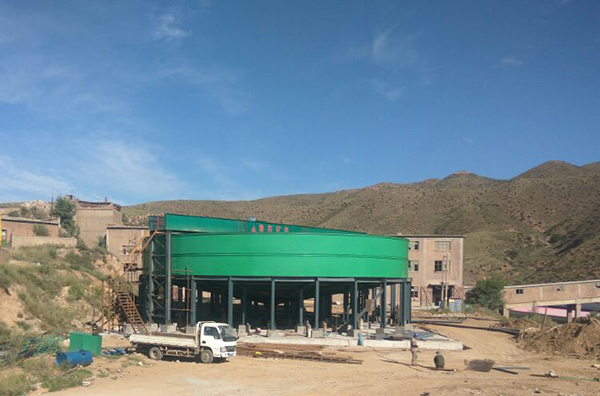

案例图片
